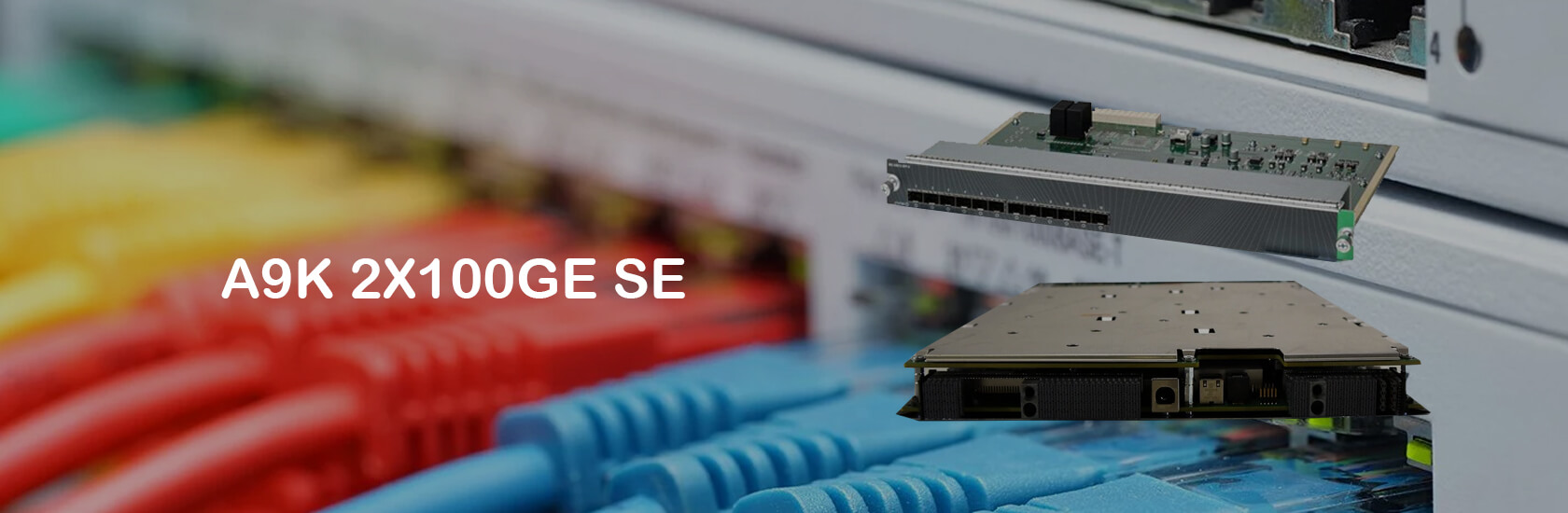

A9K 2X100GE SE
The Cisco ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers. Modular line cards support a wide range of interfaces and densities offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco ASR 9000 modular line cards and modular port adapter portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and the latest technology.
Using the modular line cards, the Cisco ASR 9000 Series can support customer applications including video-on-demand, Internet Protocol Television (IPTV), point-to-point video, Internet video, and cloud-based computing.
These line cards can also be used to deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, supporting profitable business, residential, and mobile services.
|Compliant Standards||IEEE 802.3ah, IEEE 802.1ag|
|Data Link Protocol||100 Gigabit Ethernet|
|Data Transfer Rate||100 Gbps|
|Designed For||ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2|
|Device Type||Expansion module|
|Dimensions (WxDxH)||1.7 in x 20.5 in x 14 in|
|Form Factor||Plug-in module|
|Manufacturer Warranty||1 year warranty|
|Ports Qty||2 ports|
