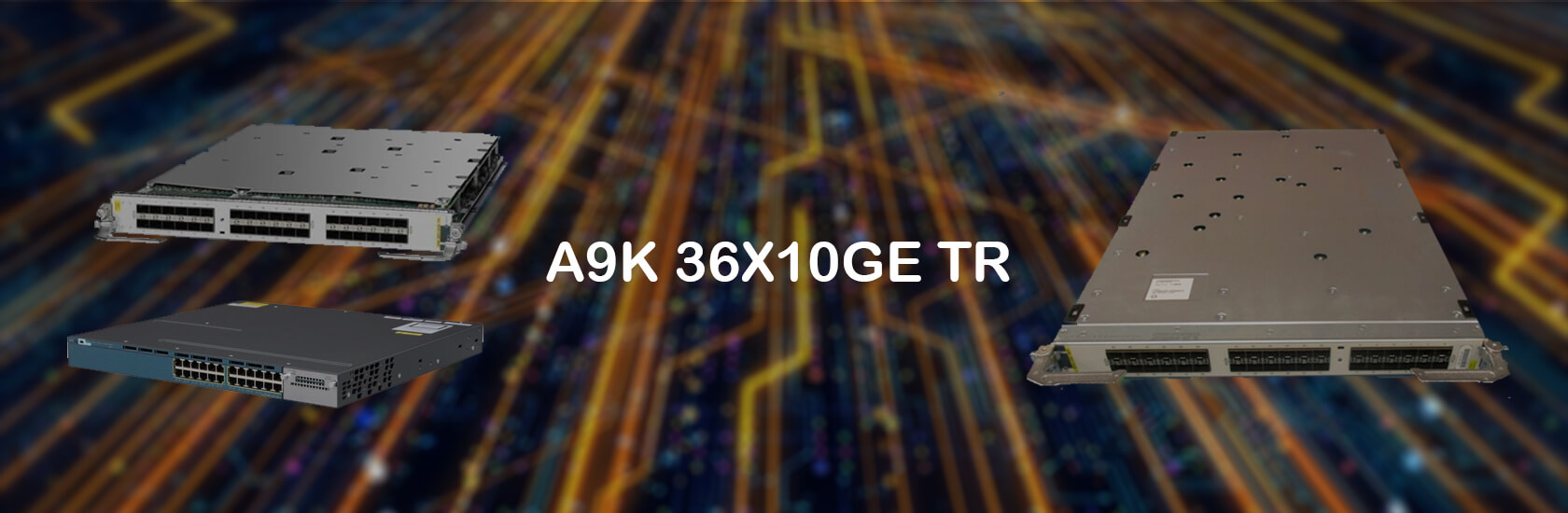

A9K 36X10GE TR

The Cisco ASR 9000 series 36-Port 10 Gigabit Ethernet Line Cards deliver an industry-leading thirty-six 10-Gigabit Ethernet ports to any slot of a Cisco ASR 9000 series aggregation services router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network today that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. These line cards deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol label switching (IP/MPLS) edge services.

The Cisco ASR 9000 series 36-Port 10 Gigabit Ethernet Line Cards are fully compatible with all Cisco ASR 9000 series chassis, route switch processors (RSPs), and line cards. No hardware upgrade to the chassis or cooling system is required.

Total bandwidth is dependent on the number and type of RSPs installed. The Cisco ASR 9000 series 36-Port 10 Gigabit Ethernet Line Cards are also fully compatible with the 22-slot Cisco ASR 9922 chassis.

Each line card provides simultaneous support for both Layer 2 and Layer 3 services and features, helping operators qualify and stock a single line card that can be deployed in any combination of Layer 2 and Layer 3 applications, thereby reducing capital expenditures (CapEx) and operating expenses (OpEx), as well as reducing the time required to develop and deploy services. The Cisco ASR 9000 series Ethernet line cards set a standard for Layer 2 and Layer 3 service density and scale, allowing operators to offer predictable, managed transport services while optimizing the use of network assets.

Specification
Compliant Standards IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709
Data Link Protocol 10 GigE
Designed For ASR 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
Device Type Expansion module
Dimensions (WxDxH) 1.7 in x 20.5 in x 14 in
Form Factor Plug-in module
Manufacturer Warranty 1 year warranty
Ports Qty 36 ports
