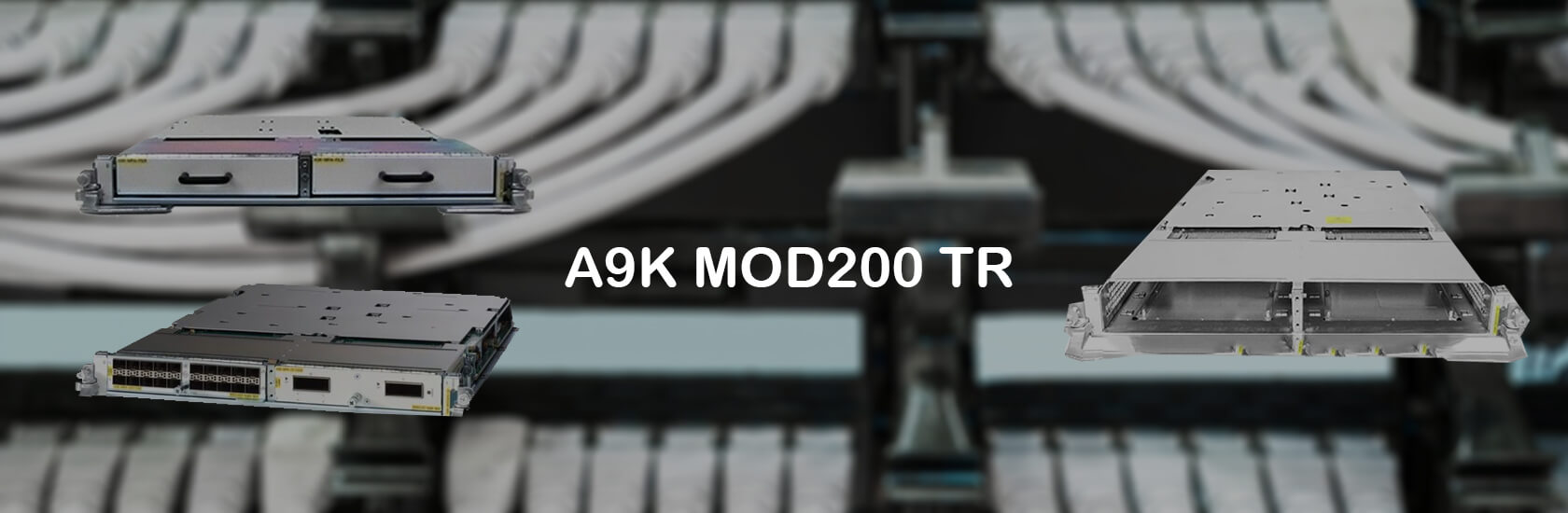

The advanced Cisco ASR 9000 Series 200G modular line card provides customers with a highly flexible solution. This modular line card has two open bays (bay 0 and bay 1) for plugging in modular port adapters (MPA), which gives network operators the flexibility to choose the ideal port density, speed, and optic based on their network requirements. With this modular line card, Cisco continues to focus on investment protection, along with consistent feature support, broad interface availability, and the ultimate technology.

Using modular line cards along with port adapters, the ASR 9000 Series can support a wide range of customer applications, including video on demand, Internet Protocol Television (IPTV), point-to-point video, Internet video, and cloud-based computing. The line cards can also be used to deliver economical, scalable, highly available, line‑rate Ethernet, and IP/Multiprotocol Label Switching (IP/MPLS) edge services. Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, supporting profitable business, residential, and mobile services.

Technical Specifications: Slot Provided Free Qty : 2 Total Qty : 2

Networking Compliant Standards : IEEE 802.1ae, IEEE 802.1ag, IEEE 802.3, IEEE 802.3ah, ITU-T G.709, ITU-T Y.1731 Connectivity Technology : Wired Features : Full duplex mode, MACsec support, Modular design, MPLS support, NetFlow, Quality of Service (QoS), Virtual Circuit Connectivity Verification (VCCV) Form Factor : Plug-in module Type : Expansion module

Miscellaneous Compliant Standards : ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EN 300 386, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN50082-1, EN55022, EN55024, ETSI 300 019, FCC Class A certified, FDA, ICES-003 Class A, IEC 60825, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC/UL/CSA/EN 60950-1, VCCI Class A

Environmental Parameters Humidity Range Operating : 10 - 85% Max Operating Temperature : 104 °F Min Operating Temperature : 41 °F

Header Brand : Cisco Compatibility : PC Manufacturer : CISCO DS HARDWARE DIRECT Model : Packet Transport Optimized Packaged Quantity : 1 Product Line : Cisco Mod200 Modular Line Card System Requirements Min Operating System : Cisco IOS XR 6.0.1 Dimensions & Weight Depth : 20.5 in Height : 14 in Weight : 19 lbs Width : 1.7 in Service & Support
