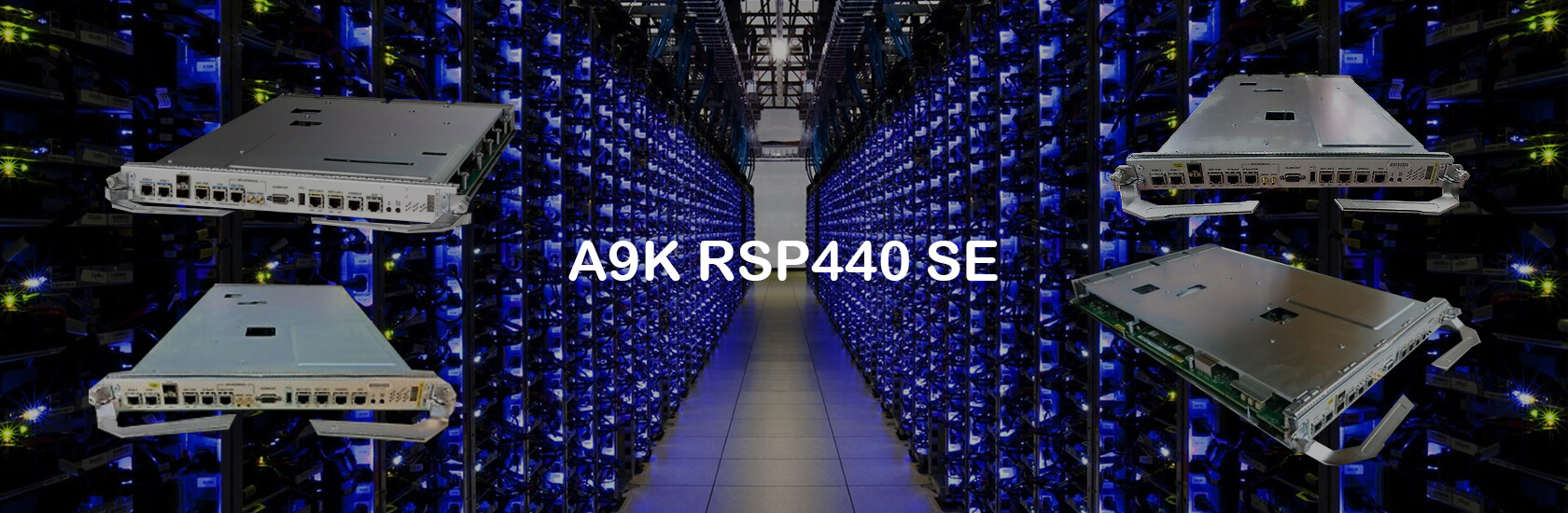

A9K RSP440 SE

Product Identifiers

A9K-RSP440-SE is the Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 12GB. The Cisco ASR 9000 Series Route Switch Processor 440 (RSP 440) is a main system processor for Cisco ASR 9000 Series. It supports scalable, low-power, next-generation platforms, as well as required by today’s service provider networks.

Model A9K-RSP440-SE
Type Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 12GB
Switch fabric

◦ High-capacity full-duplex integrated dual-switch fabric

◦ 220 Gbps/slot with single RSP

◦ 440 Gbps/slot with dual RSP

Memory internal

◦ 12-GB ECC-protected DRAM for A9K-RSP440-SE

◦ Solid state disk: two 16-GB SSDs

◦ 8-GB embedded USB

Memory external ◦ USB 2.0 Type A receptacle
Compatibility
Model Description
ASR-9010-DC Cisco ASR 9010 DC Chassis
ASR-9010-DC-V2 ASR 9010 DC Chassis with PEM Version 2
ASR-9010-AC Cisco ASR 9010 AC Chassis
ASR-9010-AC-V2 ASR 9010 AC Chassis with PEM Version 2
ASR-9006-DC Cisco ASR 9006 DC Chassis
ASR-9006-DC-V2 ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2
ASR-9006-AC Cisco ASR 9006 AC Chassis
ASR-9006-AC-V2 ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2
Compare to Similar Item
Model A9K-RSP440-TR A9K-RSP440-SE
Type Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 12GB
Switch fabric

◦ High-capacity full-duplex integrated dual-switch fabric

◦ 220 Gbps/slot with single RSP

◦ 440 Gbps/slot with dual RSP

◦ High-capacity full-duplex integrated dual-switch fabric

◦ 220 Gbps/slot with single RSP

◦ 440 Gbps/slot with dual RSP

Memory internal

◦ 6-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP440-TR

◦ Solid state disk: two 16-GB SSDs

◦ 8-GB embedded USB

◦ 12-GB ECC-protected DRAM for A9K-RSP440-SE

◦ Solid state disk: two 16-GB SSDs

◦ 8-GB embedded USB

Memory external ◦ USB 2.0 Type A receptacle ◦ USB 2.0 Type A receptacle
