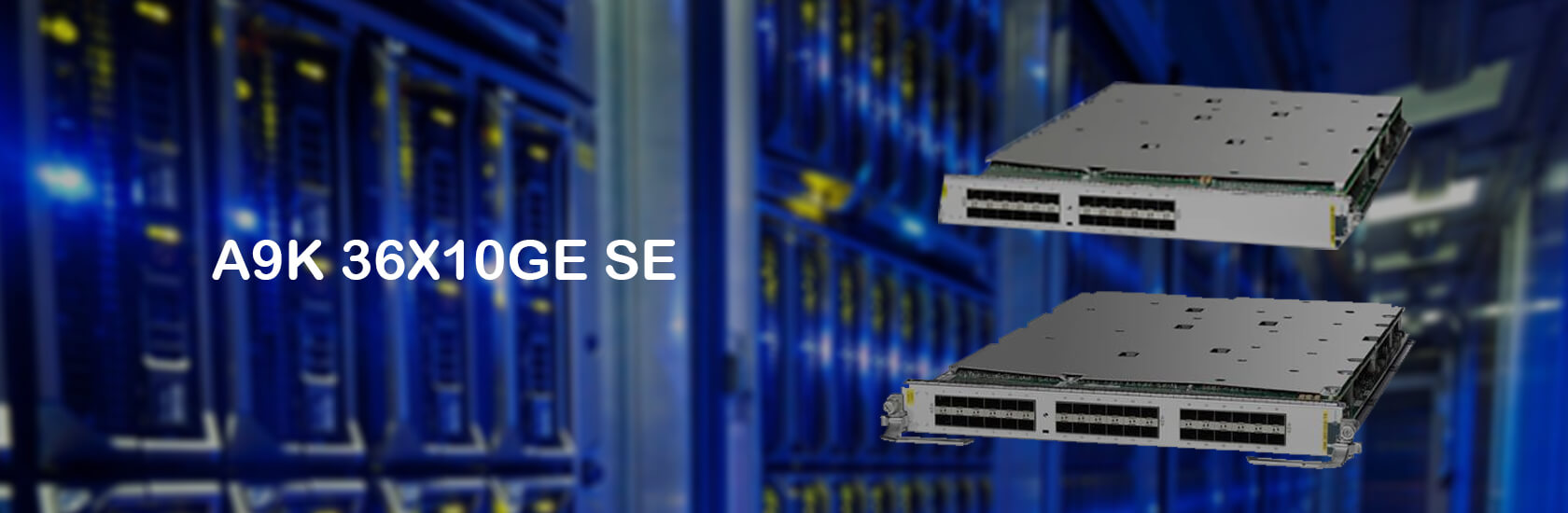

A9K 36X10GE SE
The Cisco ASR 9000 Series 36-Port 10 Gigabit Ethernet Line Cards deliver an industry-leading thirty-six 10-Gigabit Ethernet ports to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network today that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. These line cards deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, allowing profitable business, residential, and mobile services.
Specification
| Compliant Standards | IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709 |
| Data Link Protocol | 10 GigE |
| Data Transfer Rate | 10 Gbps |
| Designed For | ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2 |
| Device Type | Expansion module |
| Dimensions (WxDxH) | 1.7 in x 20.5 in x 14 in |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 1 year warranty |
| Ports | 10 Gigabit SFP+ x 36 |
