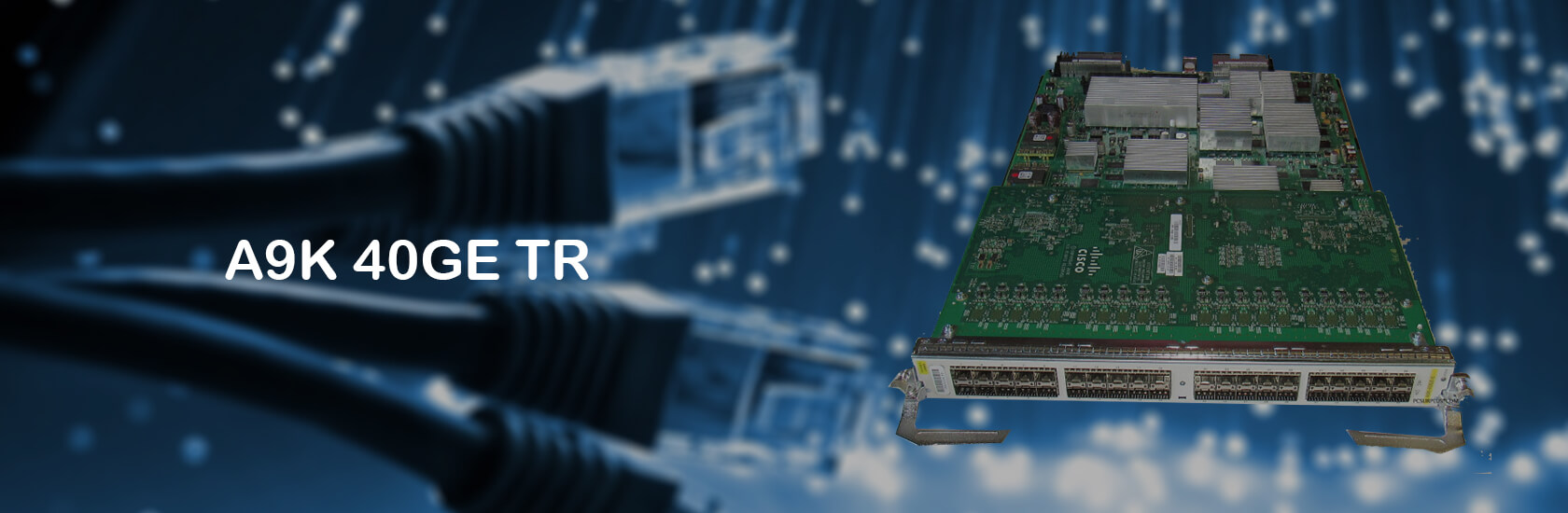

Cisco A9K-40GE-TR network switch module Gigabit Ethernet40-Port GE Line Card, Packet Transport Optimized, Requires SFPs Remove bandwidth bottlenecks in your network today that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic with the Cisco® ASR 9000 Series 40 and 56 Gigabit Ethernet Line Cards. This line card delivers industry-leading 40 1-Gigabit Ethernet ports or a combination of 4 10-Gigabit Ethernet and 16 1-Gigabit Ethernet ports to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These line cards deliver economical, scalable, highly available, line-rate Ethernet and IP/Multiprotocol Label Switching IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, allowing profitable business, residential, and mobile services.

Specification

Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Full duplex Flow control support Ports & interfaces
Ethernet LAN (RJ-45) ports 40 Performance
Compatibility Cisco ASR 9000 Ergonomics
Connectivity LEDs Management features
Quality of Service (QoS) support Operational conditions
Operating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 85% Storage relative humidity (H-H) 5 - 95% Weight & dimensions
Dimensions (WxDxH) 43.7 x 520.7 x 355.6 mm
