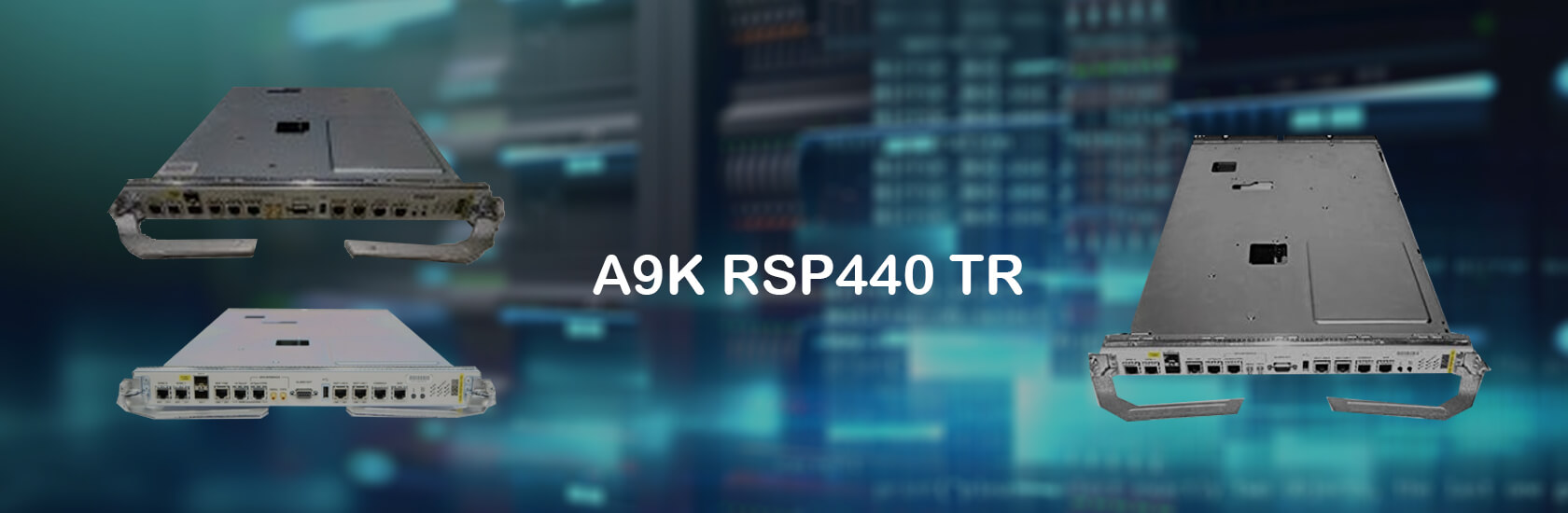

A9K RSP440 TR
Product Identifiers
A9K-RSP440-TR is the Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB. The Cisco ASR 9000 Series Route Switch Processor 440 (RSP 440) is a main system processor for Cisco ASR 9000 Series. It supports scalable, low-power, next-generation platforms, as well as required by todayâs service provider networks.
| Model | A9K-RSP440-TR |
| Type | Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB |
| Switch fabric |
⦠High-capacity full-duplex integrated dual-switch fabric ⦠220 Gbps/slot with single RSP ⦠440 Gbps/slot with dual RSP |
| Memory internal |
⦠6-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP440-TR ⦠Solid state disk: two 16-GB SSDs ⦠8-GB embedded USB |
| Memory external | ⦠USB 2.0 Type A receptacle |
Compatibility
| Model | Description |
| ASR-9010-DC | Cisco ASR 9010 DC Chassis |
| ASR-9010-DC-V2 | ASR 9010 DC Chassis with PEM Version 2 |
| ASR-9010-AC | Cisco ASR 9010 AC Chassis |
| ASR-9010-AC-V2 | ASR 9010 AC Chassis with PEM Version 2 |
| ASR-9006-DC | Cisco ASR 9006 DC Chassis |
| ASR-9006-DC-V2 | ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2 |
| ASR-9006-AC | Cisco ASR 9006 AC Chassis |
| ASR-9006-AC-V2 | ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2 |
Compare to Similar Item
| Model | Description |
| ASR-9010-DC | Cisco ASR 9010 DC Chassis |
| ASR-9010-DC-V2 | ASR 9010 DC Chassis with PEM Version 2 |
| ASR-9010-AC | Cisco ASR 9010 AC Chassis |
| ASR-9010-AC-V2 | ASR 9010 AC Chassis with PEM Version 2 |
| ASR-9006-DC | Cisco ASR 9006 DC Chassis |
| ASR-9006-DC-V2 | ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2 |
| ASR-9006-AC | Cisco ASR 9006 AC Chassis |
| ASR-9006-AC-V2 | ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2 |
| Model | A9K-RSP440-TR | A9K-RSP440-SE |
| Type | Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB | Cisco ASR 9000 Route Switch Processor with 440G/slot Fabric and 12GB |
| Switch fabric |
⦠High-capacity full-duplex integrated dual-switch fabric ⦠220 Gbps/slot with single RSP ⦠440 Gbps/slot with dual RSP |
⦠High-capacity full-duplex integrated dual-switch fabric ⦠220 Gbps/slot with single RSP ⦠440 Gbps/slot with dual RSP |
| Memory internal |
⦠6-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP440-TR ⦠Solid state disk: two 16-GB SSDs ⦠8-GB embedded USB |
⦠12-GB ECC-protected DRAM for A9K-RSP440-SE ⦠Solid state disk: two 16-GB SSDs ⦠8-GB embedded USB |
| Memory external | ⦠USB 2.0 Type A receptacle | ⦠USB 2.0 Type A receptacle |
